Toyota ChaserJZX100 · 2JZ swap · drift & show

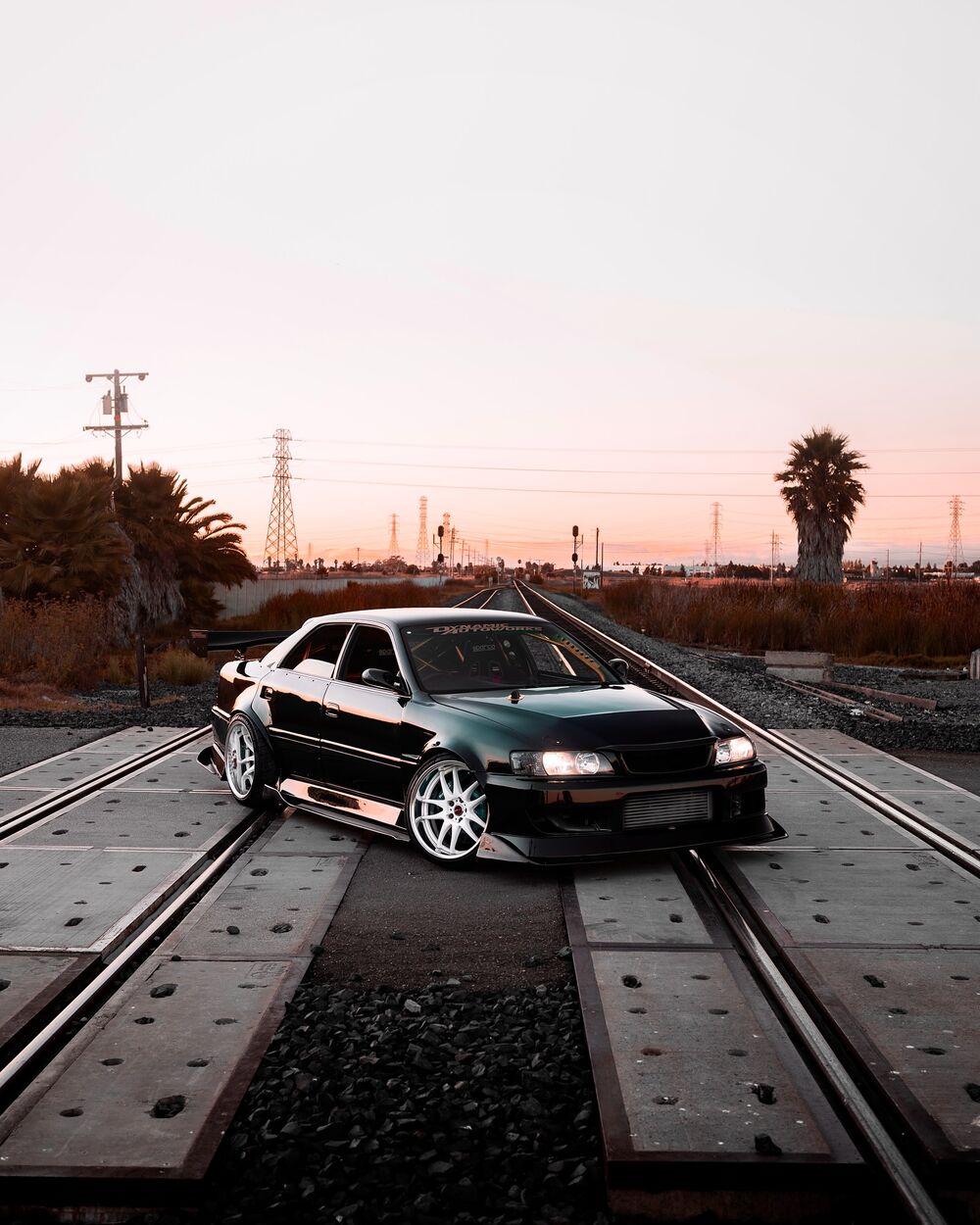

Toyota Chaser JZX100 built by Dynamic Autoworks

Build stats

Power0%

Fabrication depth0%

Versatility · drift / show0%

Build investment0%

WekFest podium Built ground-up Street legal

Spec sheetBuilt in-house

Engine

2JZ block · 1JZ VVTi head, CNC stage 3 ported w/ aero dimpling · BC 272 cams · 10:1 Wiseco pistons · BC forged rods

Turbo

Garrett GTX3584RS Gen2, T4 divided · Future Fabrication twin-scroll manifold · dual 40mm Turbosmart wastegates + 50mm BOV

Power

984whp / 796tq at 35psi · E85

Fuel system

Injector Dynamics ID1700 injectors · Radium surge tank · dual AEM 400lph external + 320lph internal E85 pumps

Brakes

Project MU big brake kit F/R w/ custom brackets · Parts Shop Max dual rear caliper setup · stainless lines

Suspension

FEAL coilovers (18kg/14kg) · TRD sway bars · Super Spec angle kit & arms · 25mm extended lower control arms

Exhaust

Custom 3″–4″ stainless downpipe to straight pipe, fabricated by SpoolinPerformance

Transmission

Geforce GSR2 4-speed dogbox · ACT XT triple-disc clutch · Tomei 2-way LSD · Driftmotion aluminum driveshaft

Chassis

8-point cage by CarBar Josh · Car Modify Wonder body kit · Origin 50mm rear widebody · D-Max 35mm front fenders, extended by WorxCustom

Full build sheet · every part, by category

Engine53 items

1JZ VVTi cylinder head
2JZ VVTi engine block
CNC stage 3 head porting w/ aero dimpling
BC 272 camshafts
BC stainless 1mm oversized valves
BC bronze valve guides
BC titanium retainers and springs
Supertech shimless buckets
Ferrea valve stem seals
10:1 custom heavy duty Wiseco pistons
Heavy duty wrist pins
BC pro series forged rods
King Race XP main/rod/thrust bearings
Custom CNC oil pump
2JZ billet engine girdle
Cometic 1.8mm head gasket
ARP head studs
ARP main studs
ARP rod bolts
Gates Racing timing belt
Titan billet timing belt tensioner
GReddy iridium spark plugs
GReddy magnetic drain plug
MSD LQ9 ignition coils
MAP ignition coil brackets
Suprastore intake manifold assembly
Turbosmart 50mm BOV
Intercooler piping by SpoolinPerformance (Phil)
Custom 3″ to 4″ turbo downpipe by SpoolinPerformance (Phil)
Custom 4″ stainless steel straight pipe by SpoolinPerformance (Phil)
Treadstone Performance 3.5in intercooler
Garrett Gen 2 GTX3584RS, T4 divided
Custom dual wastegate dump tubes
Future Fabrication twin-scroll turbo manifold
Dual 40mm Turbosmart external wastegates
AEM air temp sensor
AEM oil pressure sensor
AEM MAP sensor
AEM oil temp sensor
AEM boost controller
AEM O2 wideband
P2M aluminum intercooler clamps
Racetune billet A/C delete bracket
Driftmotion billet oil filter adapter
Driftmotion billet power-steering reservoir
Driftmotion P/S cooler
DC Power 270amp JZ alternator
KRC Pro pump
Rad Industry pump kit
Koyo oil cooler
Improved Racing oil thermostat
OdysseyFab solid engine mount
Tweak’d Performance harness w/ bulkhead

Drivetrain12 items

Geforce GSR2 4-speed topshift dogbox
ACT XT triple-disc clutch kit
RTS bellhousing
Driftmotion custom 3.5in aluminum driveshaft
Toyota Supra rear axle shaft assembly
Tomei 2-way LSD
Tilton clutch slave cylinder
Wilwood clutch master assembly
Clutch master delay valve
Custom stainless clutch lines
SPC polyurethane transmission mount
Custom transmission mount bracket

Fuel system & delivery8 items

Injector Dynamics ID1700 injectors
Radium surge tank assembly
Dual external AEM 400lph E85 pumps
AEM 320lph E85 internal lift pump
AEM fuel pressure regulator
AEM fuel pressure sensor
AEM fuel filter
Improved Racing E85 fuel line & fittings

Exterior21 items

Car Modify Wonder Shadow vented hood
Car Modify Wonder Shadow full body kit
D-Max hood pins
D-Max corner lights
D-Max D1 35mm front fenders
Origin CF roof spoiler
Origin rear 50mm widebody
Custom carbon side skirt extension
Origin carbon front side splitters
Custom carbon rear extensions

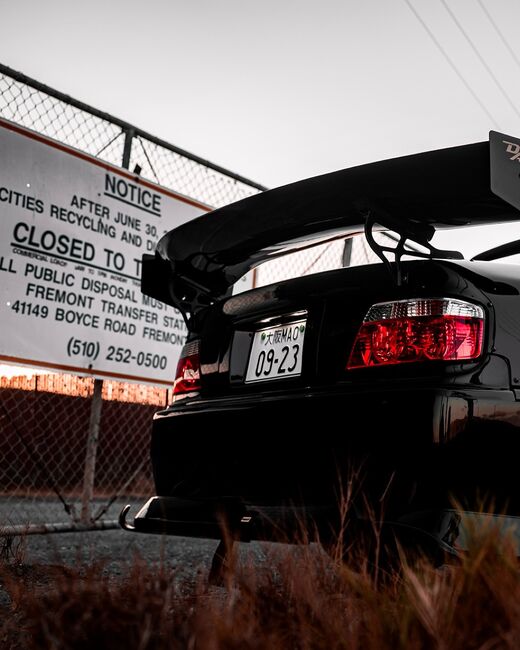

BCL CF low trunk mount, 1850mm wing
Custom fabricated CNC low-mount wing stand
Custom paint — 2022 Range Rover British Racing Green, shot with PPG
Custom 24k gold-dipped accessories — injectors, wastegate, BOV, ignition brackets
Custom CF overlay aero side mirrors
Custom CF overlay JDM Kazama-style grille
Raptor bed liner under-chassis coating
Interior, engine bay, and cage paint by Garageworks
Custom quarter-to-bumper extension by SkotyChops
Custom extended widebody by WorxCustom
Exterior paint and bodywork by EastBayCollision

Interior11 items

AEM CD-7 digital dash
AEM Infinity 6 standalone
Nardi 350mm leather deep-corn wheel
ASD hydraulic e-brake
Custom stainless hydraulic e-brake lines
D-Max style floor mats
Set of 4 Sparco Rev2 racing seats
Set of 4 Sparco 4-point racing harnesses
Custom 8-point roll cage by CarBar Josh
Custom transmission tunnel by CarBar Josh
Custom rear bucket seat mount by CarBar Josh

Suspension & brakes27 items

Rays 57CR 19x9.5 / 19x11
Advan Neova AD09
Custom FEAL coilovers (18kg front / 14kg rear)
TRD front & rear sway bars
TRD front under-brace
FIGS aluminum steering rack bushing
Super Spec front caster arm
Super Spec angle kit
Serial999 front upper control arm
Custom 25mm extended lower control arm
Super Spec rear toe arm
Super Spec rear traction arm
ZZXZ rear upper control arm
Super Spec rear lower control arm
Super Spec solid differential mount
Custom CNC solid rear subframe bushings
OdysseyFab subframe reinforcement plates
Chase Bay brake booster delete assembly
Wilwood brake master assembly
Custom F&R -3AN stainless brake lines
Custom F&R brake line brackets
Serial9 solid rear subframe bushings
Parts Shop Max dual rear caliper setup
CNC rear brake caliper brackets

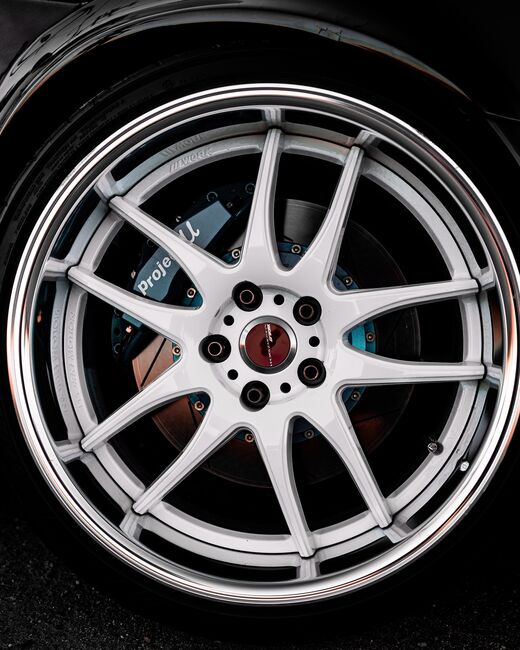

Project MU front BBK w/ custom brackets
Project MU rear BBK w/ custom brackets
F&R Project MU stainless lines
